The Essential Guide to FTTH cable Production Line

Allow us to present the essential guide to the FTTH cable production line. In this comprehensive article, we will delve into the world of fiber optic cables and their crucial role in enabling high-speed data transmission. As the demand for internet connectivity that is both faster and more reliable keeps increasing, understanding the fine points of FTTH cable production becomes essential. This guide will offer you valuable insights into the production of FTTH cable production line, covering everything from the fundamentals of cable infrastructure to the detailed manufacturing process.

This guide caters to both those who are new to the industry and those who wish to improve their knowledge. We will explore the key components of FTTH cable systems, the role of optical fibers in FTTH technology, and the process of transforming raw materials into high-quality fiber optic cables. In addition, we will discuss the design considerations, stranding techniques, buffering and jacketing processes, and the efficient operation of the FTTH cable production line.

Keep reading to learn about the advanced technologies that are changing FTTH cable manufacturing, along with the significance of testing and quality assurance in guaranteeing the reliability and durability of fiber optic cables. This guide will also cover the concluding phases of packaging and distribution, ensuring the FTTH cable production line operates without interruption from start to finish.

Key Takeaways:

  • FTTH cable production line plays a vital role in providing high-speed data transmission.
  • The fundamentals of FTTH cable infrastructure and its key components are crucial to understand.
  • Fiber drawing, coating application, and testing are the steps in the FTTH cable production process, which starts with silica and ends with fiber.
  • Performance is optimized when configurations and layouts are designed to meet the unique needs of a network.
  • The fiber gains support and protection from stranding techniques and central strength members.

An Introduction to FTTH cable Production

A clear understanding of the cable infrastructure, key components, and the role of optical fibers in FTTH technology is essential to comprehend the FTTH cable production process.

Fundamentals of FTTH cable Infrastructure

The FTTH cable infrastructure is the system of cables, connectors, and distribution points that makes data transmission possible in fiber-to-the-home (FTTH) systems. The backbone of high-speed internet connectivity is formed by this infrastructure, which allows for seamless data transfer between the provider’s network and the end user’s location.

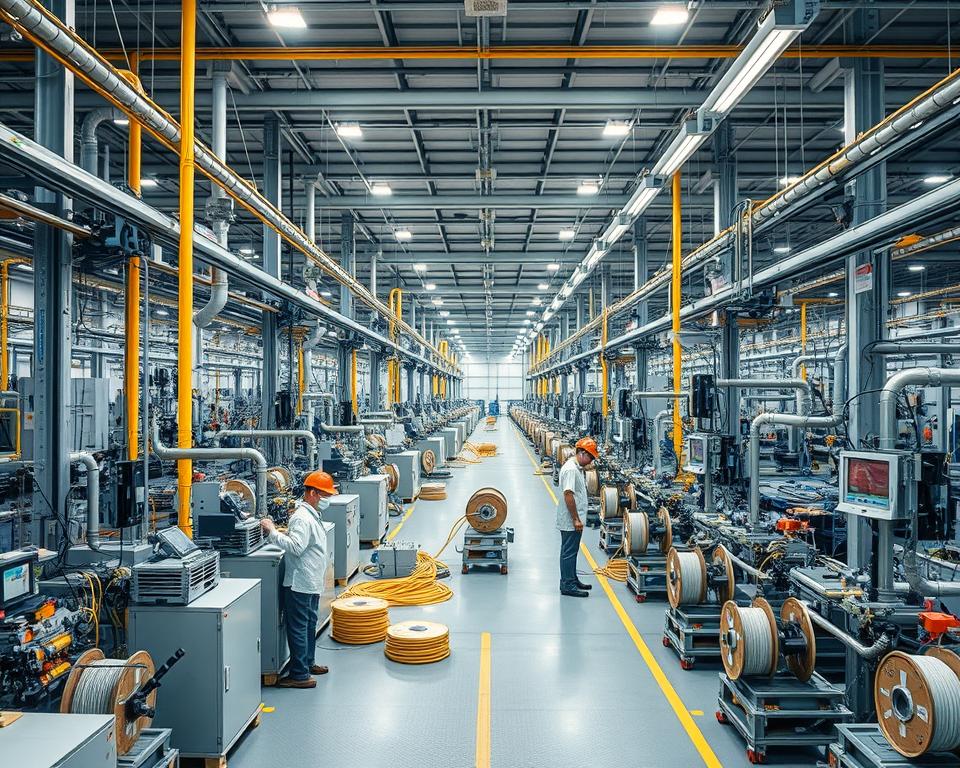

B1409A42 Aedb 481E 8Aff 113952870Cf5

Important Components of FTTH cable Systems

To ensure data transmission is smooth and efficient, FTTH cable systems rely on several key components working in unison. These components include:

  • Fiber optic cables: These cables are responsible for carrying the data signals in the form of light. With a design that provides high bandwidth and minimizes signal loss, they ensure fast and reliable data transmission.
  • The connection and disconnection of cables when necessary is facilitated by connectors, which play a crucial role in joining fiber optic cables to other cables or devices. Signal loss is minimized by the secure and reliable connection they provide.
  • Multiple end users receive divided and distributed fiber optic signals through the use of distribution points. Without negatively impacting the overall network performance, they help ensure each user receives the necessary bandwidth.

The Role of Optical Fibers in FTTH Technology

Optical fibers are fundamental to FTTH technology. Their design allows these thin strands of glass or plastic to efficiently transmit data signals using light pulses. Their high bandwidth capacity, low signal loss, and resistance to electromagnetic interference make optical fibers ideal for high-speed data transmission.

The fibers are made of a core, which carries the light signals, surrounded by a cladding layer that reflects the light back into the core, preventing signal loss. This construction allows optical fibers to transmit data over long distances without degradation in signal quality or speed.

How FTTH cable is Made: From Silica to Fiber

Fiber Drawing: Crafting the Core

The first step in the FTTH cable production process is fiber drawing, where the core of the cable is crafted. By pulling and stretching a silica glass preform, this process converts it into a long, thin fiber. The diameter of the fiber is precisely controlled during fiber drawing to guarantee optimal performance. How well and accurately the cable transmits data depends heavily on the quality and composition of its core.

Applying a Protective Layer: Coating Application for Durability

Following the fiber drawing process, coating application is the subsequent step. At this point, a protective layer, referred to as a coating, is applied to the fiber. Acting as a buffer against external factors like moisture is just one of the purposes of the coating, which also enhances the fiber’s long-term durability and reliability. Careful selection of the coating material ensures it has the right mechanical properties, which keeps the fiber intact and protected for its entire lifespan.

Testing for Quality: Fiber Testing in the Production Process

Fiber testing is carried out at various points during the FTTH cable production process to confirm the fiber’s quality and performance. Measurements of the fiber’s physical parameters, such as diameter, attenuation, and tensile strength, are taken during testing, along with inspections of the coating’s uniformity and adhesion. These tests are crucial for ensuring that the fiber meets the required standards and specifications, guaranteeing the overall quality and performance of the final FTTH cables.

Stage of Production Parameters Tested
Fiber Drawing Diameter, Attenuation, Tensile Strength
Coating Application Coating Thickness, Uniformity, Adhesion

FTTH cable Production: Testing Parameters at Different Stages (Table)

The testing parameters measured at different stages of the FTTH cable production process are summarized in the table above. Rigorous testing allows manufacturers to guarantee that each fiber used in the cables meets the required quality standards, ultimately contributing to the high-performance and reliability of FTTH cable systems.

Creating FTTH cable Configurations

The design of cable configurations is a vital aspect of fiber-to-the-home (FTTH) cable production, as it helps meet network requirements and optimize performance. Designing the cable involves thinking about things like how much data the network needs to handle, how easy it will be to grow, and how fast the data needs to travel. Companies can make sure their network infrastructure is deployed efficiently and its capabilities are maximized by customizing cable configurations to meet specific needs.

There are various FTTH cable configurations and layouts to choose from, each with its own set of advantages and considerations:

  • Each subscriber is connected one after the other to the main distribution point in a Daisy Chain Configuration. It is a cost-effective solution suitable for areas with low subscriber density.
  • The star configuration involves a direct connection from each subscriber to the central office or hub. This design provides flexibility and ease of maintenance, making it ideal for densely populated areas.
  • Subscribers are connected in a circle in the ring configuration. This configuration offers backup and can handle failures, so service isn’t interrupted if the network goes down.
  • The main distribution point connects to secondary distribution points, which then connect to individual subscribers in a tree configuration. Efficient network expansion is possible with this configuration, making it suitable for areas with a high density of subscribers.
  • High reliability and redundancy are features of the mesh configuration, which provides multiple connections between distribution points. It’s typically used in applications that are critical and require service without any interruptions.

When designing FTTH cable configurations, it is essential to consider the network requirements and expected future growth. Depending on factors like how many subscribers there are, where they are geographically located, and what services are needed, the right configuration should be selected, as each has its own benefits and drawbacks.

Careful evaluation of these factors, along with collaboration with industry experts, enables companies to design FTTH cable configurations that are specifically suited to their network requirements and provide optimal performance.

Equipment and Techniques Used in Stranding

The strength and durability of FTTH cables are greatly influenced by the stranding techniques and equipment used in their production. Each with its own advantages and applications, different stranding patterns are used. Selecting the correct stranding machinery is crucial for producing cables efficiently and to a high standard. Central strength members also play a role in providing extra support and protection to the fiber, which contributes to the overall reliability of the FTTH cables.

Exploring Different Stranding Patterns

Choosing the right stranding pattern is a crucial part of producing FTTH cables. Depending on the specific characteristics needed for the cable, various stranding patterns are employed, including reverse concentric, SZ stranding, and helical stranding. Each pattern offers unique features that can enhance the cable’s performance in terms of flexibility, strength, and resistance to external factors. To make sure the FTTH cables perform as well as possible and last a long time, stranding patterns are carefully chosen to meet the specific needs of the application.

How to Choose Stranding Machinery

The FTTH cable production line relies heavily on stranding machinery. By maintaining the required tension and alignment of the fibers, it makes it possible to precisely form the stranding pattern. Choosing the right Fibers in metal tube machinery depends on factors such as cable diameter, production speed, and desired level of automation. Because advanced stranding machines are more efficient and flexible, manufacturers can produce a large number of cables and also offer customization.

Understanding Central Strength Members

To enhance the mechanical properties of FTTH cables, central strength members are used. They offer stability, improve how much the cable can be stretched without breaking, and protect the delicate fiber inside. The cable structure is reinforced by central strength members, which act like a backbone and are typically made of materials like aramid or fiberglass, helping it resist external forces. Their presence ensures that the FTTH cables can withstand installation stresses and maintain signal transmission integrity, making them suitable for various deployment scenarios.

Fiber Protection: Buffering and Jacketing

Buffering and jacketing are essential processes in the production of FTTH cables because they protect the delicate fiber inside. These processes make sure the fiber is protected from a range of possible threats, including moisture, wear and tear, and other external elements that could put its performance and lifespan at risk.

Why Buffering is Important in cable Production

The process of buffering includes applying a protective layer around the fiber, and this layer acts as a barrier against environmental elements. This layer’s job is to keep water out, as water can cause the signal to weaken or even the fiber to break. Buffering also makes the cable more resistant to rubbing, which lowers the chance of damage when it’s being installed or maintained.

The buffering materials used must exhibit excellent adhesion to the fiber and possess a low coefficient of friction to minimize stress on the fiber. The appropriate buffering material to select will depend on factors like the environmental conditions the cable will be in and the level of protection that is needed.

Selecting Materials for Effective Jacketing

Applying an outer layer to provide even more protection for the fiber and the buffering materials is called jacketing. For strong protection against mechanical stress, impact, UV radiation, and other possible dangers, the jacketing material is specifically chosen.

Factors such as flexibility, flame resistance, and compatibility with environmental conditions are considered when selecting jacketing materials. You’ll often find jacketing made from materials like polyethylene (PE), polyvinyl chloride (PVC), and low-smoke zero-halogen (LSZH) compounds. The specific application and what the industry standards are will determine which material is chosen, as each one has its own pros and cons.

Using the Newest Technologies for Jacketing

FTTH cables now have much better protection thanks to the advancements in jacketing technologies. These latest technologies provide better strength, more flexibility, and enhanced resistance to environmental factors, leading to greater durability and reliability.

Each fiber in tight-buffered cables, an innovative jacketing technology, is individually buffered with a thin layer of plastic, offering excellent protection and flexibility. Another technology is micro-ducts, which use strong tubes to contain multiple fibers, providing high density and making cable installation versatile.

In addition, there are special jacketing technologies that are made to meet the specific needs of different industries. For example, cables that are used outside in tough conditions might have armored jackets to give them better protection from rodents, moisture, and very hot or cold temperatures.

FTTH cables can be tailored to meet the needs of different applications by using the latest jacketing technologies, which guarantees the best performance, a long lifespan, and reliability.

FTTH cable Production Line Operations

For a smooth and streamlined manufacturing process in the FTTH cable production line, efficient operations are essential. Producing high-quality fiber optic cables that allow for high-speed internet connectivity depends on each step in the production line playing a vital role. To achieve optimal efficiency, various machinery and equipment are utilized.

The manufacturing process starts by getting the raw materials ready, such as the silica needed for fiber drawing. Next, the fiber drawing process begins, and this is where the cable’s core is carefully made to meet the required specifications. After that comes coating application, which makes sure the fiber is durable and protected.

Because quality is so important, rigorous fiber testing is carried out at every stage of the production line to ensure the cables meet the highest standards. This includes checking for things like how much the signal weakens, the bandwidth, and the amount of signal loss.

Efficiency is critical in FTTH cable production line operations. Optimizing the use of machinery and equipment allows manufacturers to reduce production time and costs and increase the amount they produce. Also, when the processes are efficient, the cables are of better quality overall.

With its various stages and components, the manufacturing process can be quite complex. If manufacturers focus on efficient operations and always look for ways to make things better, they can enhance how efficient and effective their FTTH cable production line is.

To provide a holistic understanding of the FTTH cable production line operations, the following table provides a summary of key machinery and their roles in the manufacturing process:

Machine Role
Fiber Drawing Machine Produces the fiber optic cable core by pulling and stretching the silica material.
Coating Machine Applies a protective coating to the fiber optic cable, ensuring durability and resistance to external factors.
Fiber Testing Equipment Conducts various tests on the fiber optic cable to ensure quality and performance.
Spooling Machine Winds the finished fiber optic cable onto spools for packaging and distribution.
Jacketing Machine Applies an outer jacket to the fiber optic cable, providing additional protection and improving its handling.

Using advanced machinery and technologies allows manufacturers to make their production line operations more streamlined, improve efficiency, and deliver high-quality FTTH cables that meet the rising demand for high-speed internet connectivity.

Latest Technologies Used in FTTH cable Manufacturing

For the FTTH (Fiber to the Home) cable manufacturing field, which is always evolving, advanced technologies are key to improving efficiency and quality. As the demand for high-speed data transmission rises, automation, the integration of AI, and fiber coloring machines have completely changed the production process, sparking innovation and leading to the delivery of superior products.

Using Automation to Produce Fiber Optic cables

Automation has led to a major transformation in the manufacturing of fiber optic cables. Advanced machinery and robotics enable precise control over the manufacturing process, ensuring consistent quality and reducing the margin of error. This automation allows for higher productivity rates, faster production times, and improved accuracy, ultimately leading to cost savings and enhanced customer satisfaction.

Integration of AI for Quality Control

FTTH cable manufacturers can achieve accuracy and reliability like never before by using artificial intelligence (AI) in their quality control process. As production data is generated, AI algorithms can analyze it in real-time, identifying any changes or irregularities that could affect the quality of the cables. This proactive method of quality control helps to minimize errors, make production more efficient, and guarantee that only the best FTTH cables are put on the market.

The Benefits of Fiber Coloring Machines

The introduction of fiber coloring machines has revolutionized FTTH cable manufacturing by offering enhanced customization options. Optical fiber strands can be color-coded by fiber coloring machines, which makes it easy to identify them and manage the cables efficiently when installing or maintaining them. By using this technology, manual color coding is no longer needed, which reduces the chance of errors and makes the entire process of deploying cables more efficient.

Quality Assurance in Fiber Optics: The Importance of Testing

It’s of the utmost importance to ensure the highest quality in the field of fiber optics. To achieve this, rigorous testing and quality assurance measures are implemented throughout the production process. Making sure fiber optic cables are reliable and consistent depends heavily on standardized testing protocols.

Implementing Standardized Testing Protocols

To make sure every fiber optic cable meets the necessary quality standards, standardized testing protocols are put in place. At each stage of the production process, these protocols specify the testing procedures and criteria that must be followed. Following these protocols allows manufacturers to find and fix any potential problems, making sure that only the highest quality cables are given to customers.

The Importance of OTDR in Ensuring Quality

Performing quality checks on fiber optic cables requires the integral use of Optical Time-Domain Reflectometer (OTDR). Using light pulses, OTDR is a testing tool that measures how much signal is lost and reflected along an optical fiber. OTDR traces are analyzed by technicians to find problems like bending in the fiber, loss of signal, or damage to the connectors. This helps them find exactly where any problems are and fix them, which makes sure the cable is of good quality and works well.

Maintaining Rigorous Quality Assurance Standards

The consistent and reliable performance of fiber optic cables is ensured by maintaining quality assurance standards throughout the entire production process. Various aspects are covered by these standards, including the selection of materials, the manufacturing processes used, and the testing of the final product. These rigorous standards help manufacturers ensure that their products achieve the highest levels of quality and performance that the industry requires.

The Last Steps: Packaging and Distribution of FTTH cables

This section will focus on the last stages of Fiber coloring machine production, specifically packaging and distribution. After the cables have been manufactured, it’s important to package them correctly and efficiently to make it easier to deploy and install them. Furthermore, protective packaging solutions are important for safeguarding the delicate fiber optic cables when they are being transported and stored. To make sure FTTH products get to customers on time and meet their connectivity needs, efficient logistics and supply chain management are essential.

The Importance of Efficient cable Spooling

For FTTH cables to be installed smoothly and easily, efficient techniques for spooling them are vital. cable spools provide a practical and organized way to store and transport the cables, reducing the risk of tangling or damage. cable installers can save time and effort when deploying cables by using the best cable spooling techniques. When cables are spooled properly, the installation looks neater and more professional overall.

The Importance of Protective Packaging for Fiber Optic cables

Using effective protective packaging solutions is essential to keep the delicate fiber optic cables safe when they are being transported and stored. These solutions need to offer cushioning, absorb shocks, and resist external factors like moisture, dust, and physical impact. Manufacturers can make sure the fiber optic cables arrive in perfect condition and ready to be installed by using high-quality packaging materials and techniques. By reducing the chance of damage or the cables not working as well as they should, this not only keeps the cables in good condition but also makes customers happier.

The Importance of Logistics and Supply Chain Management in FTTH

For FTTH products to be delivered to customers successfully, efficient logistics and supply chain management are crucial. This involves carefully planning the transportation, storage, and distribution of the cables to ensure timely and reliable delivery. By managing the supply chain well, delays can be minimized, products can flow smoothly, costs can be reduced, and customer service can be enhanced..

Conclusion

To summarize, the ultimate guide to the FTTH cable production line has provided a complete picture of the process involved in manufacturing fiber optic cables for high-speed internet connectivity. We have stressed the importance of the FTTH cable production line in making fast and reliable data transmission a reality throughout this article.

Seamless communication, streaming, and online activities are facilitated by fiber optic cables, which play a critical role in high-speed internet connectivity. From fiber drawing to buffering and jacketing, the step-by-step process of FTTH cable production makes sure these cables are durable and of high quality.

Automation and AI integration are examples of advanced technologies that have completely changed the manufacturing process, making it more efficient and accurate. Standardized testing protocols and strict quality assurance standards also play a role in guaranteeing the reliability and performance of fiber optics.

Making sure these essential cables are deployed efficiently and protected during transportation is the purpose of the final steps in FTTH cable production: packaging and distribution. The expertise and precision that go into the FTTH cable production line are essential for meeting the growing need for high-speed internet connectivity worldwide.
